Cable description
GYFTA53

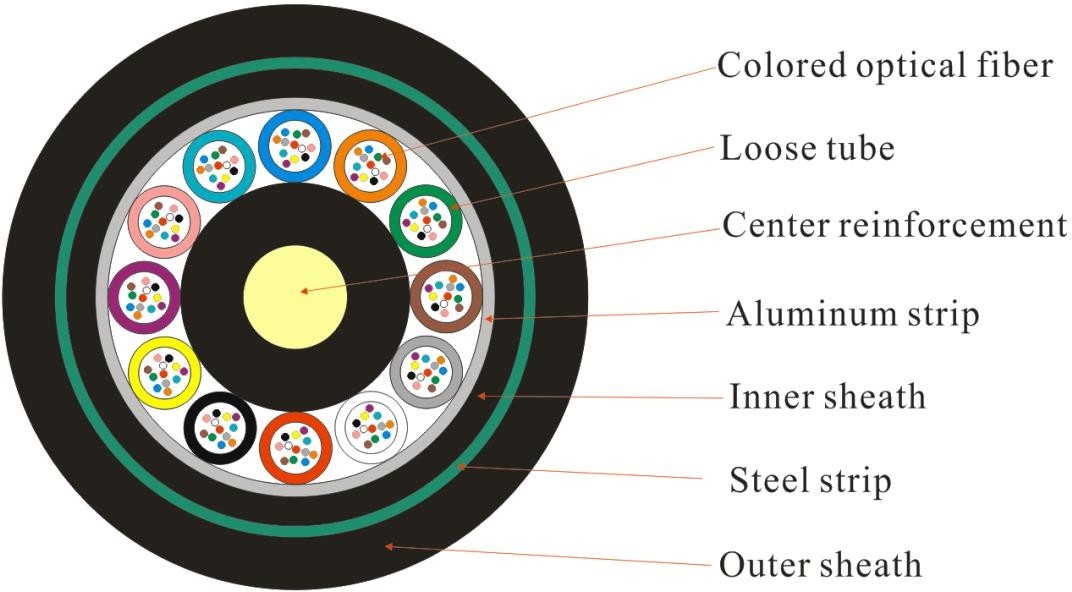

GYFTA53 (non-metallic reinforced member, loose sheath, aluminum polyethylene bonded sheath, longitudinally wrapped corrugated steel strip armor, polyethylene sheath, credit outdoor optical cable) is a waterproof composite loose tube made of single-mode or multi-mode optical fiber sheathed in high-mode plastic. The center of the cable is a non-metallic core. For some cable cores, a layer of polyethylene (PE) is extruded from the non-metallic reinforced core. The loose tube (and filling rope) is wound around the central reinforcing core to form a compact circular cable core, and the water blocking compound is filled in the gap of the cable core. A layer of polyethylene inner sheath was extruded after longitudinal binding of plastic coated aluminum strip, and polyethylene sheath was extruded after longitudinal binding of double-sided plastic coated steel strip.

GYFTA53 Fiber
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
GYFTA53 Tube
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
GYFTA53 Structure parameter
Item | Contents | Unit | Value | |||
Fiber count | Number | / | 24 | 48 | 96 | 144 |
Cable structure | / | / | 1+6 | 1+6 | 1+8 | 1+12 |
Fibers per tube | Count | / | 6 | 12 | ||
Central strength member | Material | / | FRP wire with PE cushion when necessary | |||
Nominal Diamete | mm | 6 | 3.0 | 3.6/4.2 | 3.6/7.7 | |
Cable diameter | ±5% | mm | 15.3 | 15.5 | 16.3 | 19.5 |
Outer sheath | Thickness | mm | 1.8 | |||
Cable weigh | ±10% | kg/km | 218 | 225 | 250 | 347 |
GYFTA 53 Mechanical & Environmental Performance
Item | Contents | Value |
Max. tensile load | Short term | 3000 N |
Long term | 1000 N | |
Max. crush resistance | Short term | 3000 N/100mm |
Long term | 1000 N/100mm | |
Min. bending radius | Installation | 25 x cable diameter |
Operation | 12.5 x cable diameter | |
Temperature range | Operation | -40℃ ~ +70℃ |
Installation | -30℃ ~ +60℃ | |
Storage/transportation | -40℃ ~ +70℃ |
