Cable description

GYFTC8A53

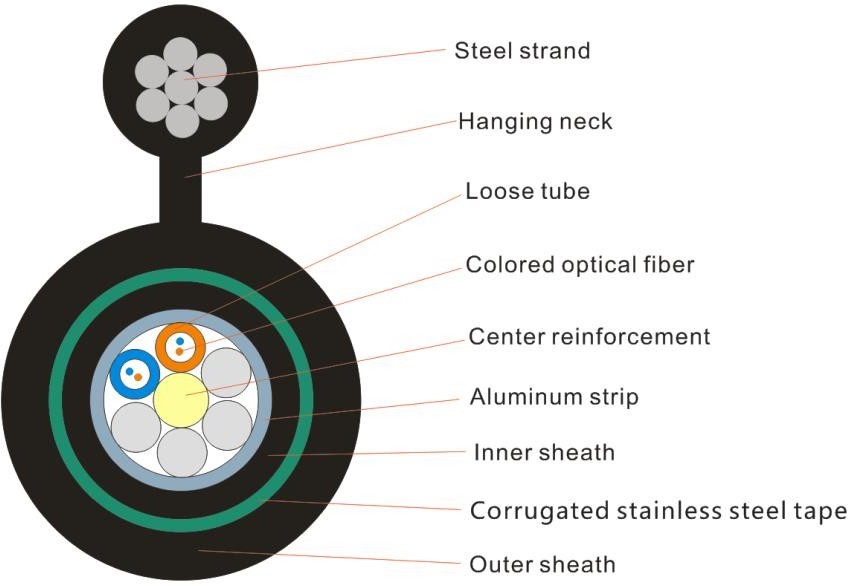

GYFTC8A53 (steel strand reinforced self-supporting overhead, loose sleeve layer twisted filling, inner protection of aluminum polyethylene, outer protection of steel polyethylene bonded sheath, 8-shaped outdoor self-supporting optical cable for communication) the structure of the optical cable is that the single-mode or multi-mode optical fiber is sheathed in the inner filling waterproof composite loose sleeve pipe made of high modulus plastic. The center of the cable core is a non-metallic reinforced core. For some cable cores, the non-metallic reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is wound on the central reinforcing core to form a compact round cable core. The gap in the cable core is filled with water resisting agent. The inner protection is coated with plastic aluminum tape and then coated with plastic polyethylene sheath. After the outer protection steel tape is wound longitudinally, the steel strand and sling polyethylene sheath are added at the same time.

GYFTC8A53

GYFTC8A53 Fiber

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua
]

GYFTC8A53 Tube

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYFTC8A53 Structure parameter

Item Contents Unit Value
Fiber Number / 4
Type / G652D
Color / Such as 3.1 Fiber color
Water blocking inside the tube Material / Fiber jelly
Cable structure / / 1+6
Fibers per tube Count / 2
Loose tube Material / PBT
Color / Such as 3.2 Tube color
Diameter mm 1.8±0.1
Thickness mm 0.32±0.05
Central strength member Material / FRP
Nominal Diameter mm 2.0
Inner sheath Material / PE
Color / Black
Thickness mm 1.0±0.1
Outer sheath Material / PE
Color / Black
Thickness mm 1.8±0.2
Cable diameter ±5% mm 13*21.1
Cable weight ±10% kg/km 264

GYFTC8A53 Mechanical & Environmental Performance

Item Contents Value
Max. tensile load Short term 6000 N
Long term 3000 N
Max. crush resistance Short term 3000 N/100mm
Long term 1000 N/100mm
Min. bending radius Installation 20 x cable diameter
Operation 10 x cable diameter
  Temperature range Operation -40℃ ~ +70℃
Installation -20℃ ~ +60℃
Storage/transportation -40℃ ~ +70℃
