Cable description

GYFTY

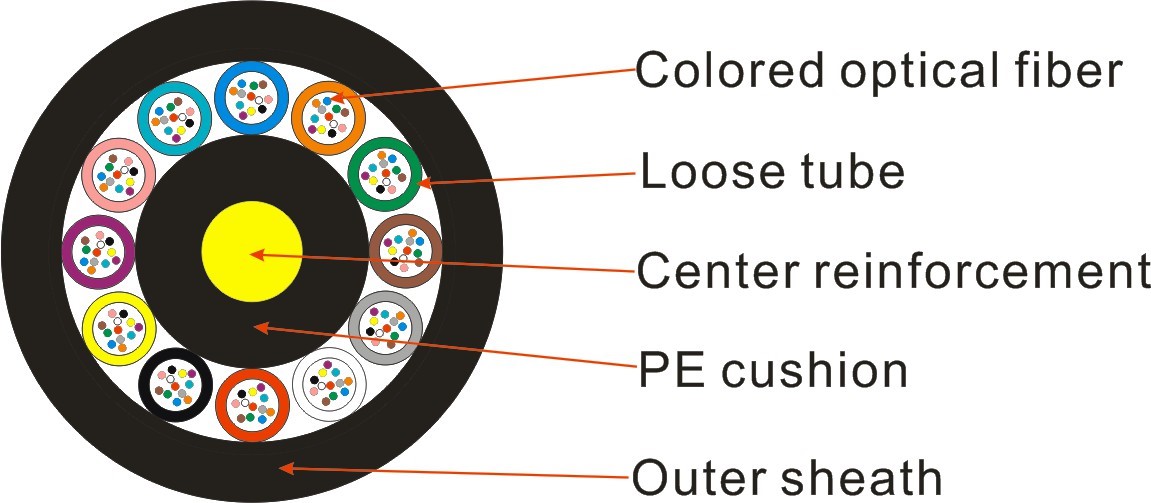

The structure of GYFTY (non-metallic reinforced component, loose sheath layer twisted filling type, outdoor optical cable for polyethylene sheath communication) optical cable is to sleeve single-mode or multi-mode optical fiber into the inner filled waterproof compound loose tube made of high modulus plastic. The center of the cable core is a non-metallic reinforced core. For some fiber optic cables with a certain number of cores, the non-metallic reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and the filling rope) is twisted around the central reinforced core to form a compact and circular cable core, and the gap in the cable core is filled with water blocking compound. A layer of polyethylene sheath is extruded outside the cable core.

GYFTY

GYFTY Fiber

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYFTY Tube

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYFTY Structure parameter

Item Contents Unit Value
Fiber count Number / 12 24 48 72 96 144
Cable structure / / 1+6 1+6 1+8 1+12
Fibers per tube Count / 6 12
Central strength Material / FRP with PE cushion when necessary
Nominal Diameter mm 2.4 2.8 3.4/4.4 3.4/7.7
Cable diameter ±5% mm 10.7 10.7 13.3 16.7
Outer sheath Thickness mm 1.8
Cable weight ±10% kg/km 96 115 150 229

GYFTY Mechanical & Environmental Performance

Item Contents Value
Max. tensile load Short term 1500 N
Long term 600 N
Max. crush resistance Short term 1000 N/100mm
Long term 300 N/100mm
Min. bending radius Installation 20 x cable diameter
Operation 10 x cable diameter
  Temperature range Operation -40℃ ~ +70℃
Installation -30℃ ~ +60℃
Storage/transportation -40℃ ~ +70℃
