Cable description

GYTC8S

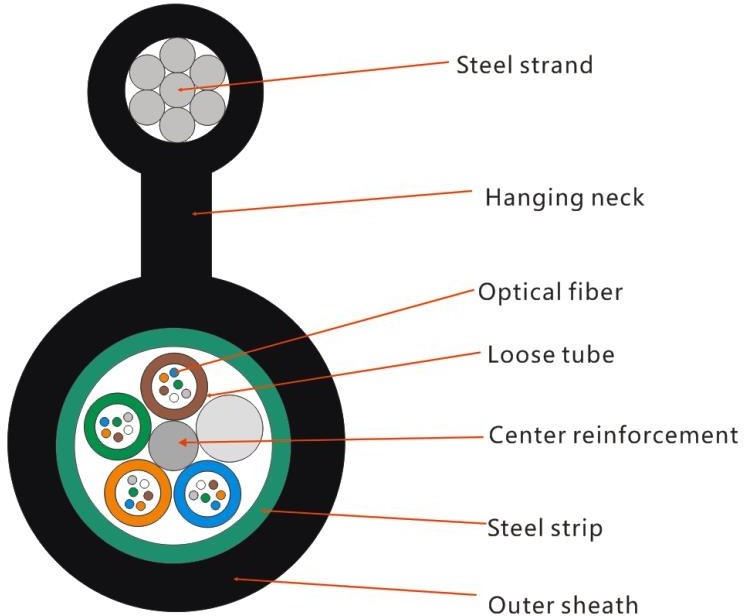

The structure of GYTC8S (metal reinforced suspension wire, loose sheath layer twisted filling type, steel polyethylene bonded sheath 8-shape self-supporting outdoor optical cable for communication) optical cable is to sleeve single-mode or multi-mode optical fiber into the inner filled waterproof compound loose tube made of high modulus plastic. The center of the cable core is a metal reinforced core. For some cable cores, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and the filling rope) is twisted around the central reinforced core to form a compact and circular cable core, and the gap in the cable core is filled with water blocking compound. After the plastic coated steel strip is longitudinally wrapped, the steel strand and sling polyethylene sheath are added at the same time.

GYTC8S

GYTC8S Fiber

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYTC8S Tube

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYTC8S Structure parameter

Item Contents Unit Value
Fiber count Number / 4 6 12 24 48
Cable structure / / 1+5
Fibers per tube Count / 4 6 12
Central strength member Material / Steel wire
Nominal Diameter mm 1.5
Cable diameter ±5% mm 9.5*17.6
Outer sheath Thickness mm Nominal 1.7
Cable weight ±10% kg/km 195 198 202

GYTC8S Mechanical & Environmental Performance

Item Contents Value
Max. tensile load Short term 3000 N
Long term 1000 N
Max. crush resistance Short term 3000 N/100mm
Long term 1000 N/100mm
Min. bending radius Installation 20 x cable diameter
Operation 10 x cable diameter
Temperature range Operation -40℃ ~ +70℃
Installation -20℃ ~ +60℃
Storage/transportation -40℃ ~ +70℃
