Cable description
GYTC8Y

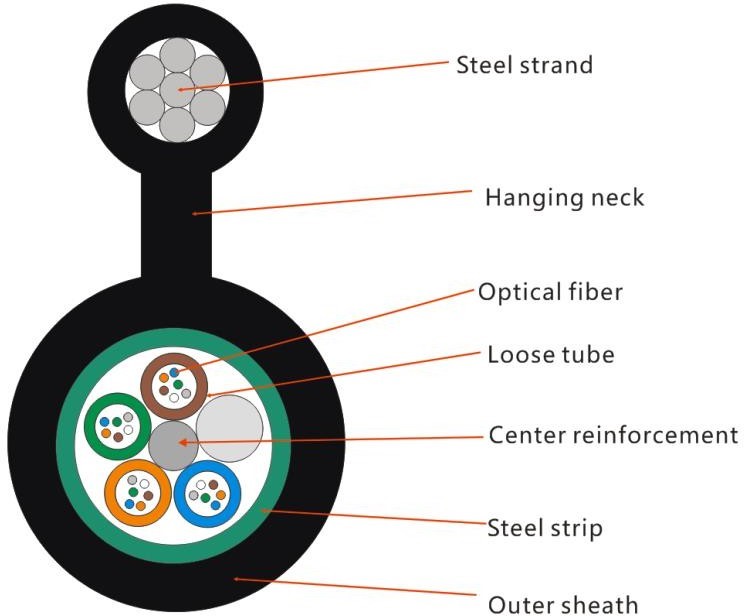

The structure of GYTC8S (metal reinforced suspension wire, loose sheath layer twisted filling type, steel polyethylene bonded sheath 8-shape self-supporting outdoor optical cable for communication) optical cable is to sleeve single-mode or multi-mode optical fiber into the inner filled waterproof compound loose tube made of high modulus plastic. The center of the cable core is a metal reinforced core. For some cable cores, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and the filling rope) is twisted around the central reinforced core to form a compact and circular cable core, and the gap in the cable core is filled with water blocking compound. After the plastic coated steel strip is longitudinally wrapped, the steel strand and sling polyethylene sheath are added at the same time.

GYTC8Y Fiber
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
GYTC8Y Tube
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Gray | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
GYTC8Y Structure parameter
Item | Contents | Unit | Value |
Fiber count | Number | / | 48 |
Cable structure | / | / | 1+5 |
Fibers per tube | Count | / | 12 |
Central strength member | Material | / | Steel wire |
Nominal Diameter | mm | 1.5 | |
Cable diameter | ±5% | mm | 9.0*16.5 |
Outer sheath | Thickness | mm | Nominal 1.7 |
Cable weight | ±10% | kg/km | 155 |
GYTC8Y Mechanical & Environmental Performance
Item | Contents | Value |
Max. tensile load | Short term | 3000 N |
Long term | 1000 N | |
Max. crush resistance | Short term | 1000 N/100mm |
Long term | 300 N/100mm | |
Min. bending radius | Installation | 20 x cable diameter |
Operation | 10 x cable diameter | |
Temperature range | Operation | -40℃ ~ +70℃ |
Installation | -20℃ ~ +60℃ | |
Storage/transportation | -40℃ ~ +70℃ |
