Cable description

GYTS

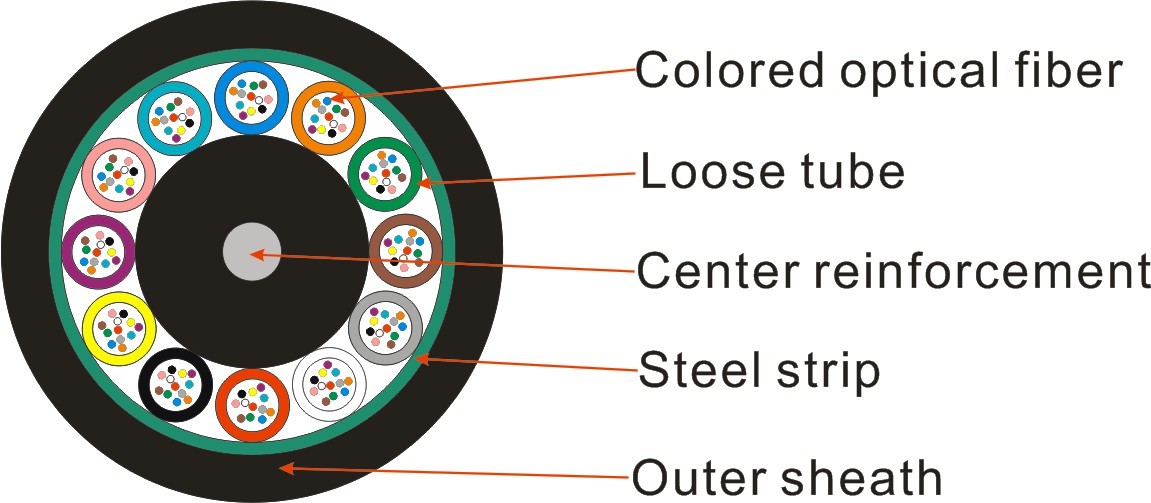

The structure of GYTS (metal reinforced component, loose sheath layer twisted filling type, outdoor optical cable for steel polyethylene bonded sheath communication) optical cable is to sleeve single-mode or multi-mode optical fiber into the inner filled waterproof compound loose tube made of high modulus plastic. The center of the cable core is a metal reinforced core. For some cable cores, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and the filling rope) is twisted around the central reinforced core to form a compact and circular cable core, and the gap in the cable core is filled with water blocking compound. Extruded polyethylene sheath after longitudinal wrapping of plastic coated steel strip.

GYTS

GYTS Fiber

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYTS Tube

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYTS Structure parameter

Item Contents Unit Value
Fiber count Number / 24 48 72 96 144
Cable structure / / 1+5 1+6 1+8 1+12
Fibers per tube Count / 6 12
Central strength Material / Steel wire with PE cushion when necessary
Nominal Diameter mm 1.41 1.8 2/2.8 2/4.4 2/7.9
Cable diameter ±5% mm 8.9 10.7 11.7 13.4 17
Outer sheath Thickness mm 1.6
Cable weight ±10% kg/km 89 128 152 189 280

GYTS Mechanical & Environmental Performance

Item Contents Value
Max. tensile load Short term 1500 N
Long term 600 N
Max. crush resistance Short term 1000 N/100mm
Long term 300 N/100mm
Min. bending radius Installation 20 x cable diameter
Operation 10 x cable diameter
Temperature range Operation -40℃ ~ +70℃
Installation -30℃ ~ +60℃
Storage/transportation -40℃ ~ +70℃
