Cable description

GYTY

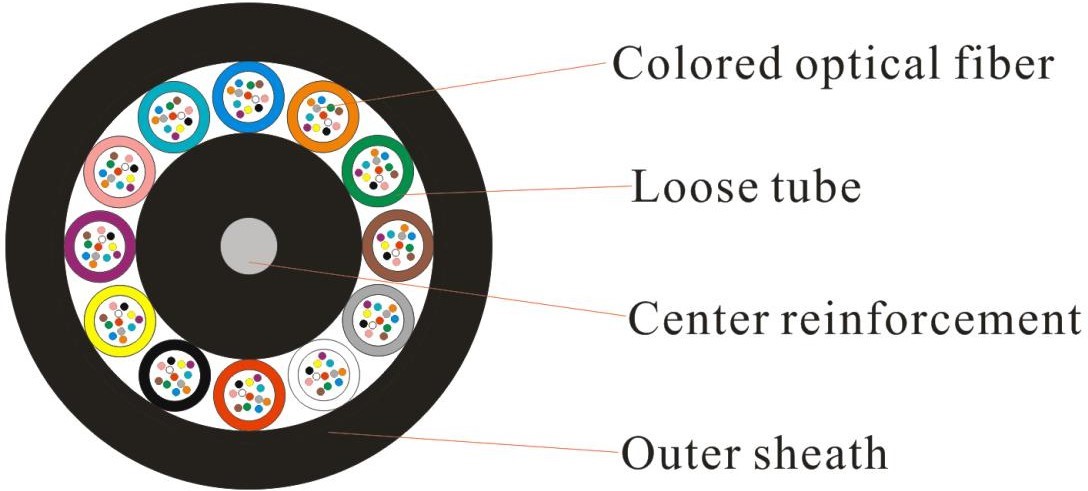

The structure of GYTY (metal reinforcement, loose sleeve stranded, polyethylene sheathed communication outdoor optical cable) is that single-mode or multi-mode optical fiber is sheathed in a waterproof composite loose sleeve made of high modulus plastic. The center of the cable core is a metal reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) is extruded from the metal core. The loose tube (and filling rope) is wound on the central reinforcing core to form a compact round cable core, and the water blocking compound is filled in the gap of the cable core. The cable core is extruded with a polyethylene sheath.

GYTY

GYTY Fiber

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYTY Tube

No 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua

GYTY Structure parameter

Item Contents Unit Value
Fiber count Number / 48 96
Cable structure / / 1+5 1+8
Fibers per tube Count / 12
Central strength Material / Steel wire with PE cushion when necessary
Nominal Diameter mm 1.6 1.6/3.5
Cable diameter ±5% mm 9.6 11.5
Outer sheath Thickness mm 1.8
Cable weight ±10% kg/km 112 150

GYTY Mechanical & Environmental Performance

Item Contents Value
Max. tensile load Short term 1500 N
Long term 600 N
Max. crush resistance Short term 1000 N/100mm
Long term 300 N/100mm
Min. bending radius Installation 20 x cable diameter
Operation 10 x cable diameter
Temperature range Operation -40℃ ~ +70℃
Installation -30℃ ~ +60℃
Storage/transportation -40℃ ~ +70℃
